Round Tapered Steel, Anchor Bolt Base Light Pole

Mobirise

Contact the Sequoia Sales Team for Pricing

No two projects are the same. Click Here to contact the Sequoia Sales Team so we can quote exactly what your project will cost. No hidden fees, no upsell. We're in the business of building exactly what you need, and nothing less.

Galvanized, Powder Coat or Painted Options Available

The finish of your pole is important. It protects the structure underneath from the corrosive effects of the atmosphere and weather, and ensures your poles, and more importantly the lighting and other items that they support remain safely in the air for decades to come. We offer galvanized, power coated, and painted finishes. If you have a project that requires a combination of the above, or maybe even none, give us a call or shoot us an email, as we're able to make custom poles for your specific project.

Customizable Mounting Options

From side drilling to tenon mounting, we offer it all. If you have a custom mounting system, let us know and we'll build your pole to order.

Very Competitive Pricing

We take pride in delivering not only a superior product in terms of engineering & build quality, but a product of superior cost as well. If you aren't satisfied with a quote from another manufacturer, contact our sales team. We can almost certainly beat it.

Product Specifications

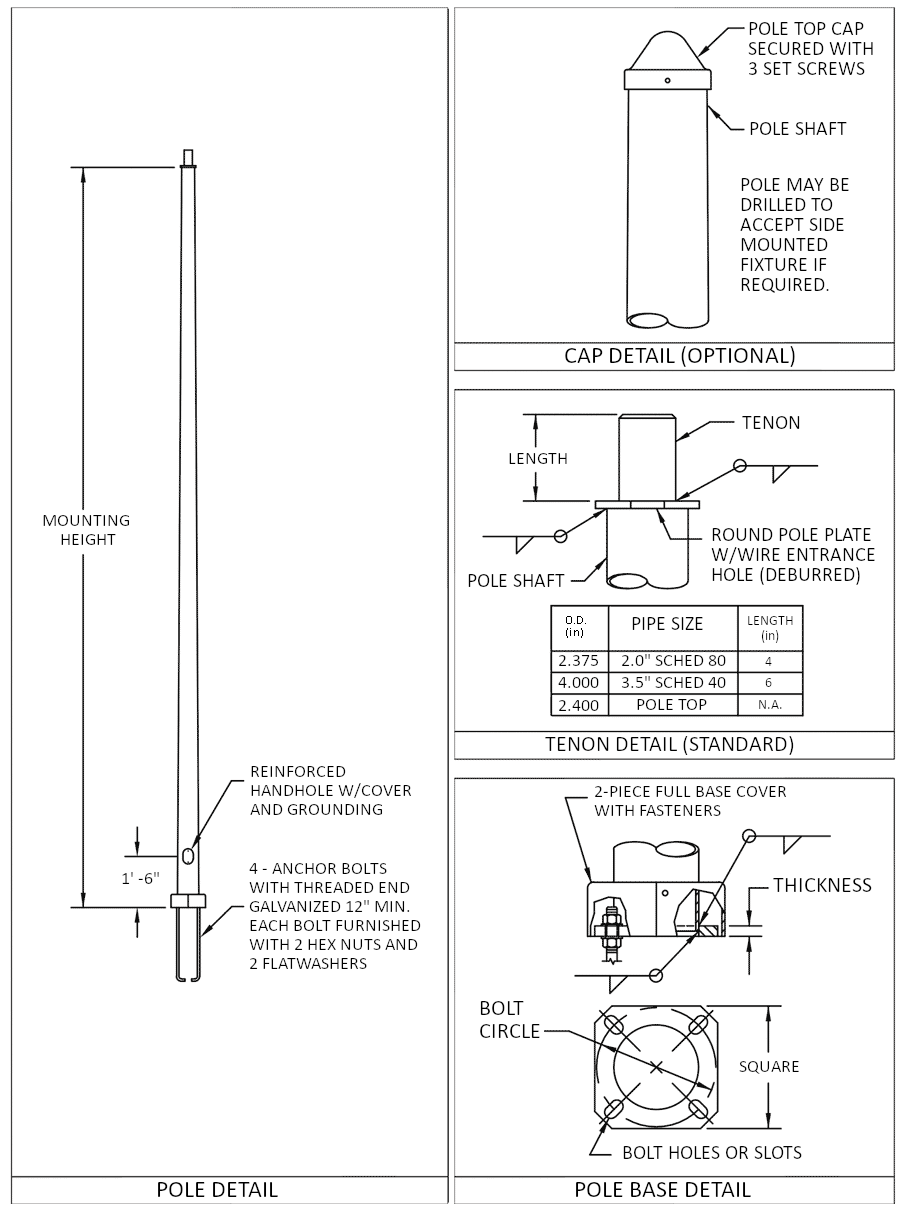

The one-piece shaft is fabricated from welded, hot rolled steel tubing with a minimum yield strength of 42 KS with a constant taper of 0.14” per foot.

All poles are equipped with a removable pole top cap that are drilled for a side mount light fixture. Other options include tenon mount, top cover only or open top for fixtures that have mounts that match the pole top diameter.

A 2.5” x 3” hand hole is provided at the base end of the pole and consists of a reinforced frame and cover. The hand hole is located at 12” above the base plate.

Poles include a base plate cover made from ABS plastic or formed steel.

Anchor bolts are manufactured from ASTM F1554 Grade 55 round material and include two hex nuts and two flat washers. Bolts have an “L” bend in the embedded end and are galvanized a minimum of 12” on the threaded end.

Structural fasteners supplied with the poles are galvanized high strength carbon steel. Non-structural fasteners are galvanized or zinc plated carbon steel or stainless steel.

Technical Details

All units listed below are imperial unless otherwise stated.

Mounting Height (ft)Weight (lbs) & Wall Thickness (ga)OD Base (in)OD Top
(in)
Bolt Circle on Center (in) & Bolt Projection (in)Anchor Bolt Size (in)
20140 & 115.93.18.5 - 9.5 & 3.88 - 4.38 1.00 x 36.00 x 4.00
20160 & 116.53.79 - 10 & 3.88 - 4.38 1.00 x 36.00 x 4.00
25155 & 115.92.48.5 - 9.5 & 3.88 - 4.38 1.00 x 36.00 x 4.00
25200 & 117.03.59.5 - 10.5 & 3.88 - 4.38 1.00 x 36.00 x 4.00
25280 & 77.03.59.5 - 10.5 & 4 - 4.5 1.00 x 36.00 x 4.00
30200 & 116.62.49 - 10 & 3.88 - 4.38 1.00 x 36.00 x 4.00
30265 & 11
8.0
3.8
10.5 - 11.5 & 3.88 - 4.38 1.00 x 36.00 x 4.00
30380 & 7
8.0
3.8
10.5 - 11.5 & 4.75 - 5.251.25 x 42.00 x 6.00
35250 & 11
7.3
2.4
10 - 11 & 3.88 - 4.38 1.00 x 36.00 x 4.00
35315 & 11
8.5
3.6
11 - 12 & 4 - 4.5 1.00 x 36.00 x 4.00
35370 & 11
9.5
4.6
12.5 - 13.5 & 4 - 4.5 1.00 x 36.00 x 4.00
39285 & 11
7.8
2.4
10.5 - 11.5 & 3.88 - 4.38 1.00 x 36.00 x 4.00
39515 & 7
9.0
3.6
12 - 13 & 4.75 - 5.25 1.00 x 36.00 x 4.00
45450 & 11
10.0
3.7
13 - 14 & 4 - 4.5 1.00 x 36.00 x 4.00
45650 & 7
10.03.7
13 - 14 & 4.75 - 5.251.25 x 42.00 x 6.00
45780 & 7
11.0
4.7
14.5 - 15.5 & 5 - 5.51.25 x 42.00 x 6.00
50475 & 11
10.0
3.0
7 - 9 & 3.25 - 3.75 1.00 x 36.00 x 4.00
50680 & 7
10.0
3.0
13 - 14 & 4.75 - 5.251.25 x 42.00 x 6.00
50812 & 7
11.0
4.0
14.5 - 15.5 & 5 - 5.51.25 x 42.00 x 6.00
501020 & 7
13.06.0
17 & 5.5 - 61.50 x 54.00 x 6.00
501335 & 7
13.0
6.0
17.5 & 6.25 - 6.751.75 x 84.00 x 6.00
55890 & 7ga (bottom), 11ga (top)
11.0
3.6
14.5 - 15.5 & 5 - 5.51.25 x 42.00 x 6.00
55975 & 7ga (bottom), 11ga (top)
12.0
4.6
16 & 5.5 - 61.50 x 54.00 x 6.00
551225 & 7ga (bottom), 11ga (top)
12.5
5.2
16.5 & 5.5 - 61.50 x 54.00 x 6.00
601060 & 7
12.0
4.0
16 & 5.5 - 61.50 x 54.00 x 6.00
601275 & 5ga (bottom), 7ga (top)12.5
4.5
16.5 & 5.5 - 61.50 x 54.00 x 6.00
601075 & 7ga (bottom), 11ga (top)
13.0
4.8
17 & 5.5 - 61.50 x 54.00 x 6.00
651400 & 5ga (top), 7ga (bottom)
13.0
4.3
17 & 5.5 - 61.50 x 54.00 x 6.00
651200 & 7
13.0
4.3
17 & 5.5 - 61.50 x 54.00 x 6.00
701440 & 5ga (bottom), 7ga (top)
13.0
3.6
17 & 5.5 - 61.50 x 54.00 x 6.00
701270 & 7
13.0
3.6
17 & 5.5 - 61.50 x 54.00 x 6.00
